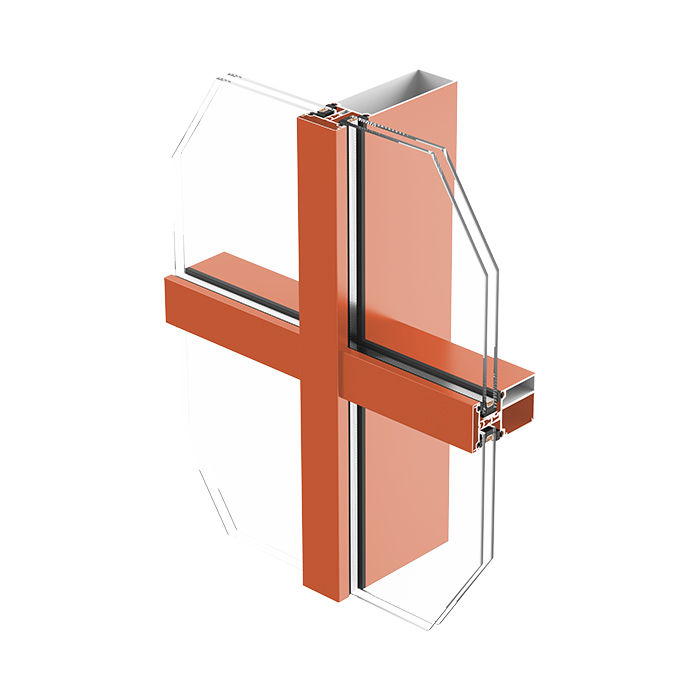

Glass Curtain Wall
1、The curtain wall glazing material selection
The glass curtain wall uses 6060-T66 aluminum alloy, which primarily consists of aluminum, magnesium, and silicon. This alloy undergoes T66 heat treatment, significantly enhancing its strength and hardness while maintaining excellent corrosion resistance and weldability. Additionally, the glass curtain wall incorporates pure A-rod primary aluminum and high-quality PA66-GF25 insulation strips, greatly improving its acoustic and thermal insulation performance.
2.Commercial window curtain wall has the advantage of practicality.

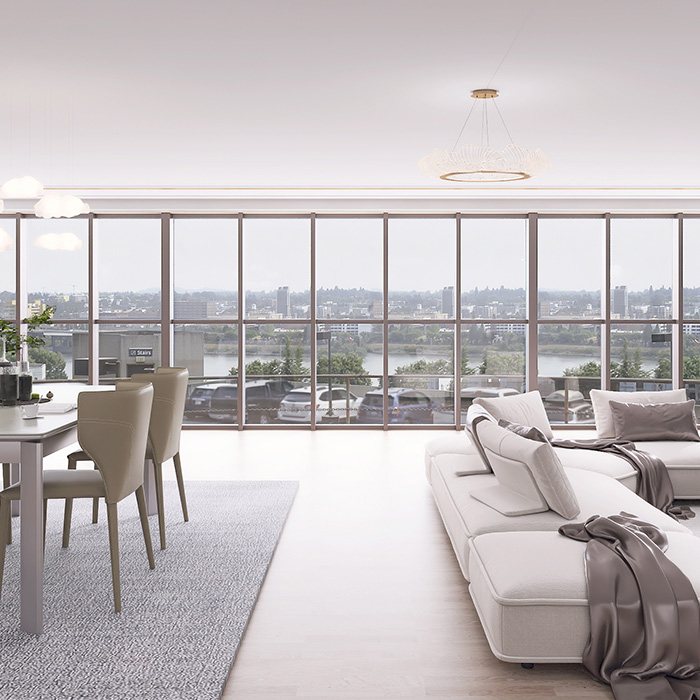

Commercial window curtain walls often incorporate insulating materials that help reduce energy consumption. Additionally, their large glass surfaces allow for abundant natural light, enhancing the interior environment. The glass exteriors provide a modern and sleek appearance, elevating the overall design of the building. Moreover, these systems are engineered to withstand various weather conditions, ensuring durability and protection.
3.Glass exterior walls has the advantage of working with high-end brands.

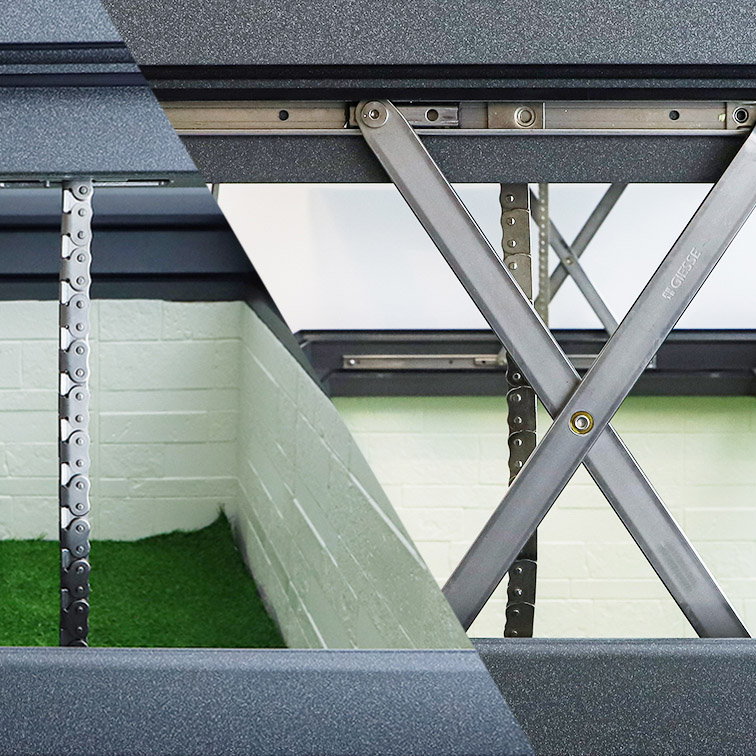

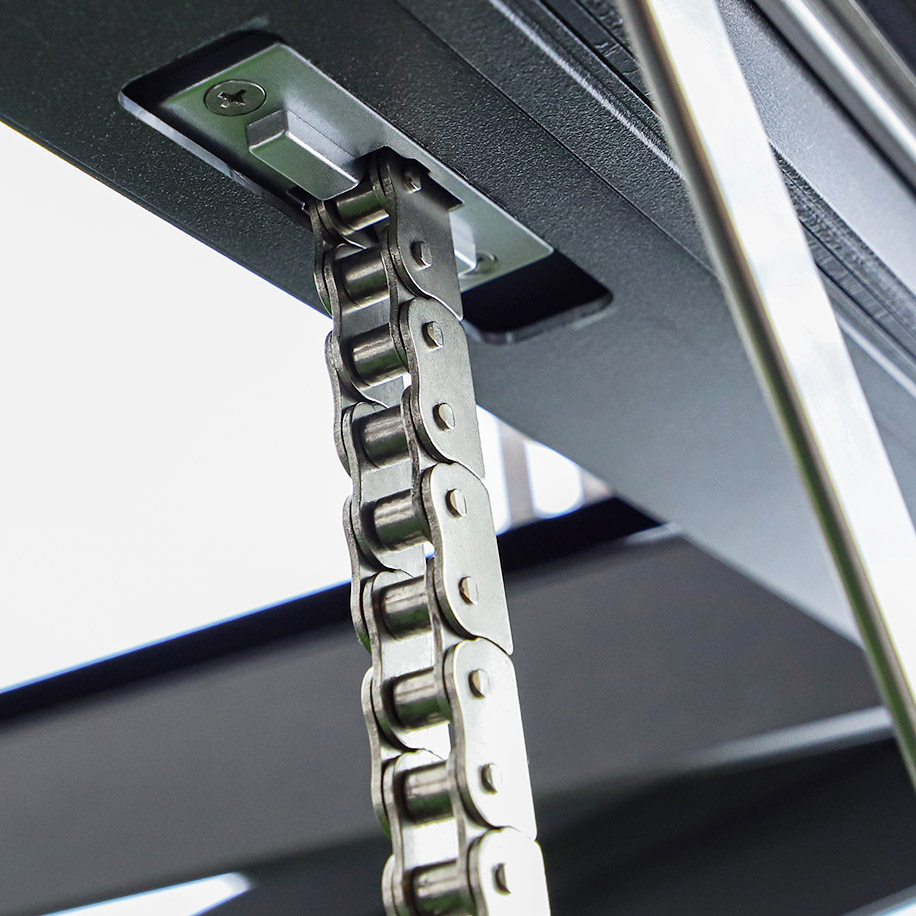

The glass exterior walls select Italy GIESSE hinge and TOPP imported motor handle feature a built-in fan below to prevent rainwater infiltration.Whether it's a curtain wall glazing, commercial window curtain wall, or glass exterior walls，selected the world's top Dutch AkzoNobel environmental protection powder, durable use does not fade.
Configuration Descriptio
| Hardware brand | Italian imported motor TOPP | |||
| Surface treatment | AkzoNobel environmentally friendly powder | |||
| Sealant strip | EPDM | |||
| Product wall thickness | Profile wall thickness 2.0mm | |||
| Hardware hinge | High load-bearing hinge | |||
| Glass size | 28-40mm | |||
| Aluminum profile | 6060-T66 primary aluminum | |||
| Insulation strip | Alien TECHNOFORM wind insulation strip | |||
System structure
| Look at the size | Frame 31mm Sash 66mm | |||
| Product thickness | Frame 90mm Sash 73mm | |||

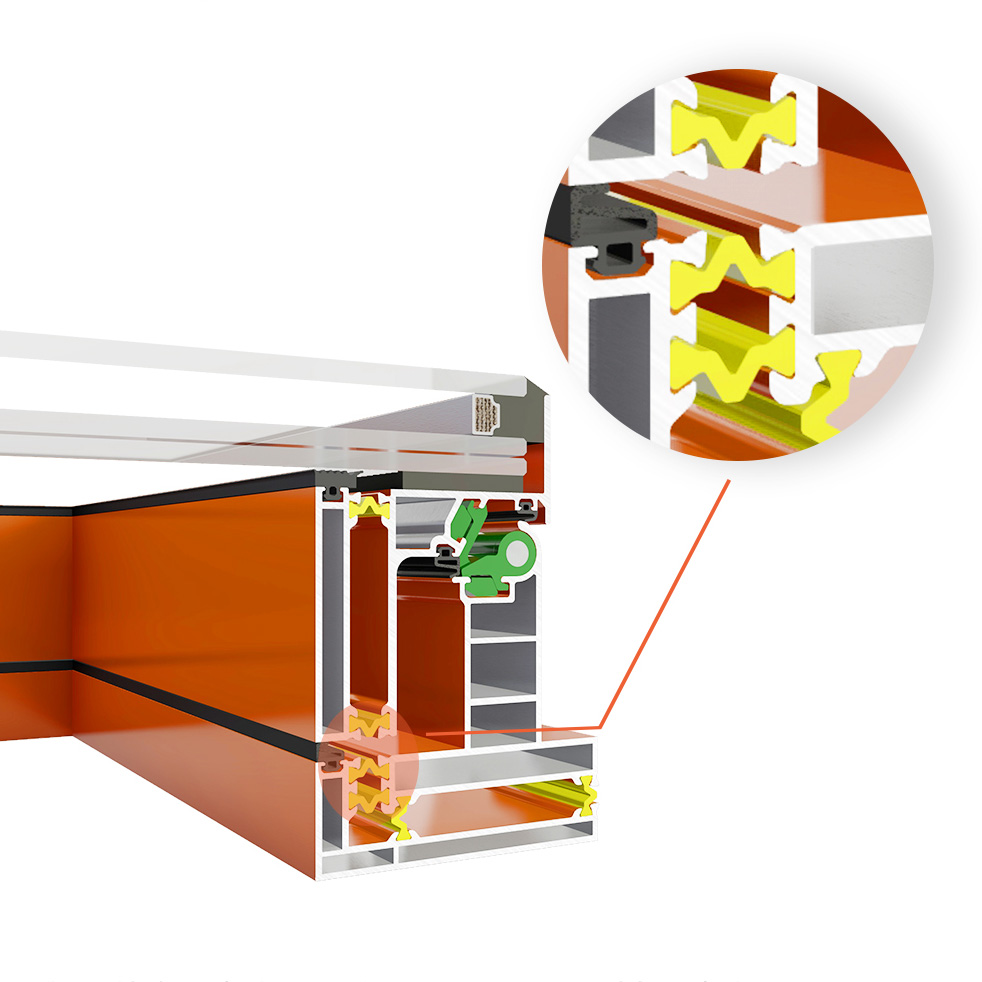

| Cavity structure | The frame fans are designed with indoor and outdoor dual chamber structures, combined with 45 degree angle cutting and injection molding technology,ensuring stable structure and higher safety. | |||
| Mullion Link | Full welding and integrated spray molding of unit panels | |||

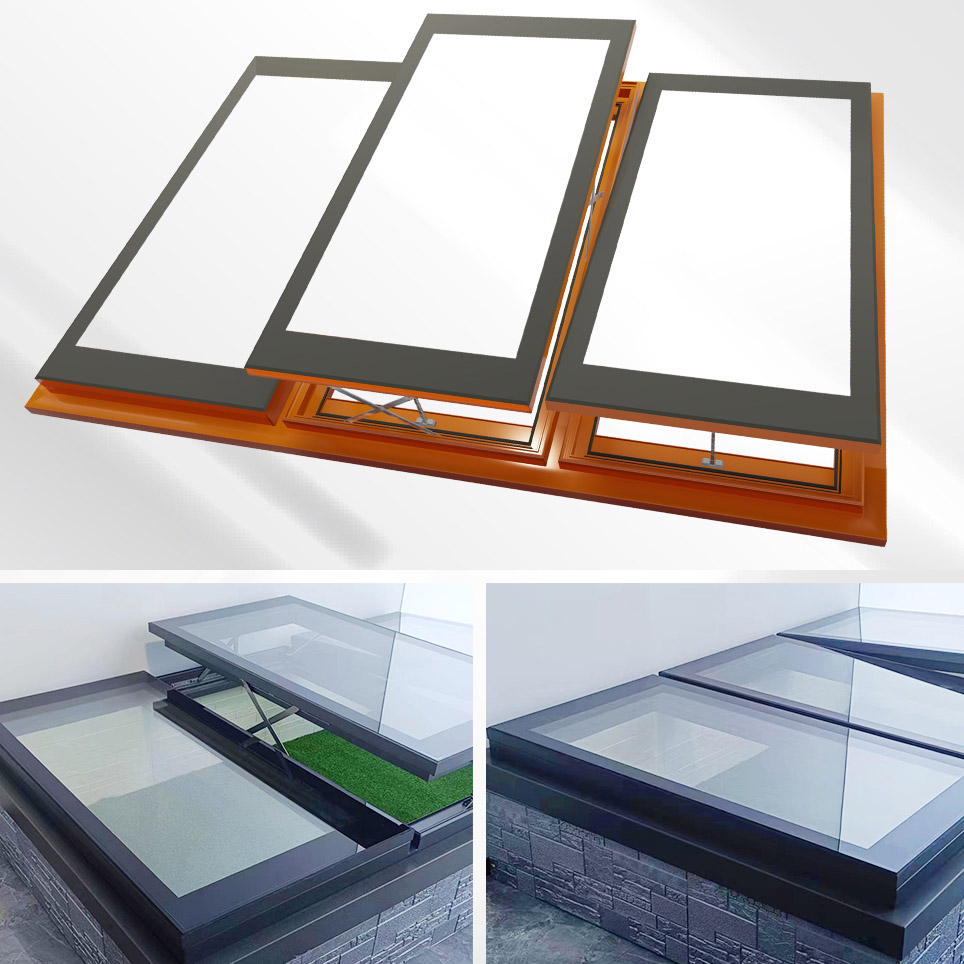

| Appearance structure | The outer surface of the glass is integrated with a pure flat design. Fixed plate and open plate integrated flat. | |||
| Three seals | Whether it's a curtain wall glazing, commercial window curtain wall, or glass exterior walls，all adopting a standard three layer sealing design. | |||
| Insulation chamber | The frame fan is designed with a broken bridge structure. Can distinguish indoor and outdoor colors without affecting insulation performance. | |||
| Welded structure | The entire frame is fully welded, and the fan body can be fully welded to achieve unit plate and splicing assembly. | |||

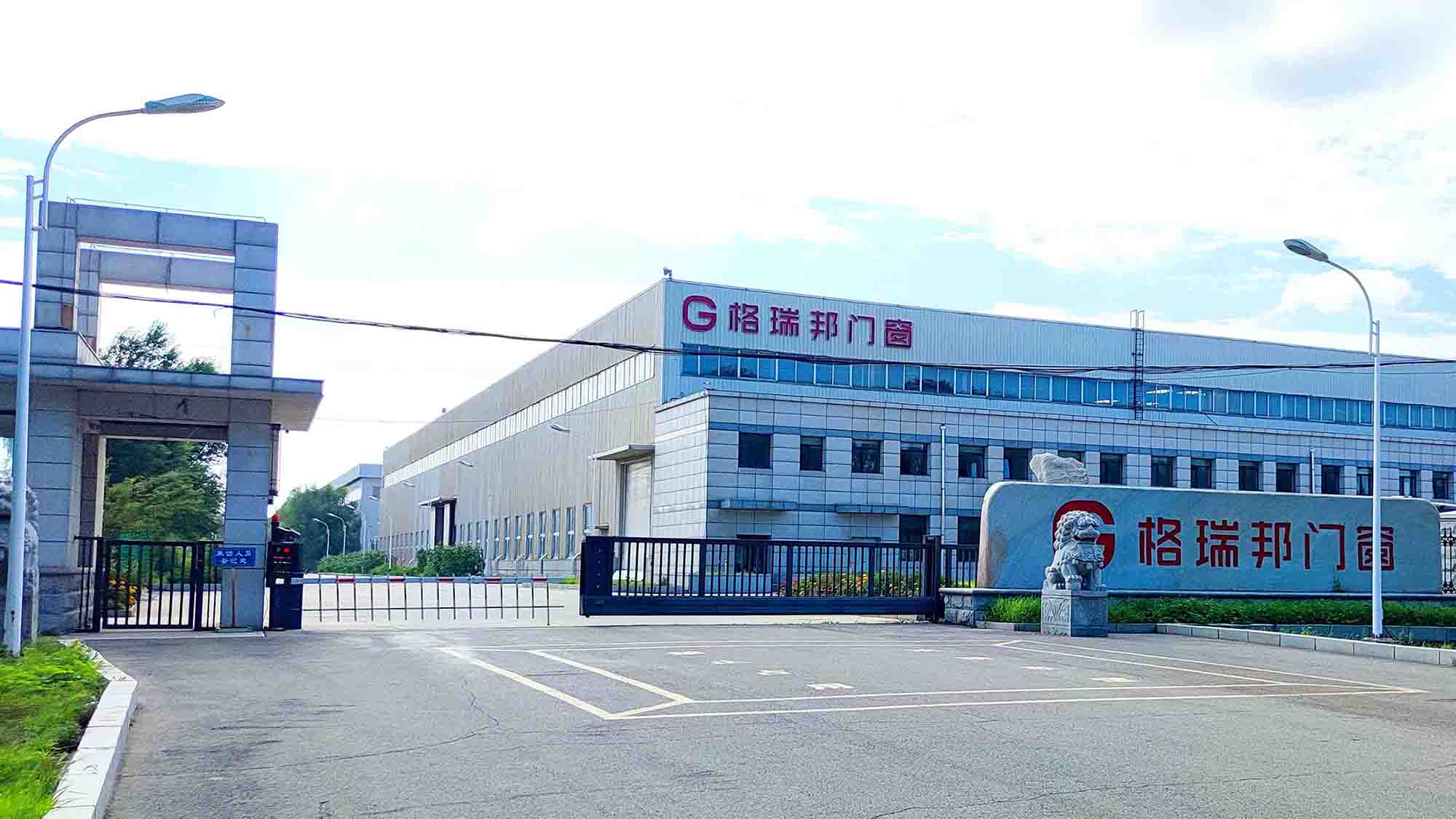

About Us
